AC Series

A and B Type
XLR Chassis Mounts

The AC series, A and B type XLR chassis receptacles have been designed and manufactured with the Original Equipment Manufacturers’ (OEM) needs in mind. The compact shell design allows a significant space saving over the traditional ‘D’ type shell. Gold plated contacts improve the performance, ensuring a reliable contact and the unique grounding link options offer flexibility in design.

Note: Refer to Schematic Chart for Grounding Options

Downloads »

Filter By

Gender
Contact Layouts
Contact
Finish
Flange
Latch
Switch
Grounding

No items were found matching the selected filters

Male

3 Pole

A Type / Black Finish / Horizontal PCB
Gold Plated Contacts AC3MAH-AU-PRE Drawing   3D
Gold Plated Contacts AC3MAH1-AU-PRE Drawing   3D
Gold Plated Contacts AC3MAH2-AU-PRE Drawing   3D
A Type / Black Finish / Horizontal PCB / Non-Latching / Integrated Switch
Gold Plated Contacts AC3MAH4-SW-B Drawing
A Type / Black Finish / Vertical PCB
Gold Plated Contacts AC3MAV-AU-PRE Drawing   3D
Gold Plated Contacts AC3MAV1-AU-PRE Drawing   3D
Gold Plated Contacts AC3MAV2-AU-PRE Drawing   3D
A Type / Black Finish / Solder Contacts
Gold Plated Contacts AC3MA-AU-B Drawing   3D
B Type / Nickel Finish / Horizontal PCB
- AC3MBH-AU-PRE Drawing   3D
- AC3MBH1-AU-PRE Drawing   3D
- AC3MBH2-AU-PRE Drawing   3D
- AC3MBH3-AU-PRE
B Type / Nickel Finish / Horizontal PCB / Non-Latching
- AC3MBHL-AU-PRE

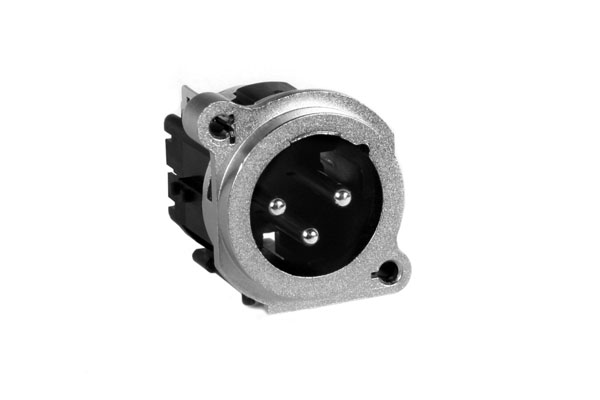

B Type / Nickel Finish / Vertical PCB
- AC3MBV-AU-PRE Drawing
- AC3MBV1-AU-PRE Drawing
- AC3MBV2-AU-PRE Drawing   3D
- AC3MBV3-AU-PRE

4 Pole

A Type / Black Finish / Horizontal PCB
Gold Plated Contacts AC4MAH-AU-B Drawing   3D

5 Pole

A Type / Black Finish / Horizontal PCB
Gold Plated Contacts AC5MAH-AU-B Drawing   3D
A Type / Black Finish / Vertical PCB
Gold Plated Contacts AC5MAV-AU-B Drawing   3D
B Type / Nickel Finish / Horizontal PCB
- AC5MBH-AU-PRE Drawing   3D
B Type / Nickel Finish / Vertical PCB
- AC5MBV-AU-PRE Drawing   3D

Female

3 Pole

A Type / Black Finish / Horizontal PCB / Non-Latching
Gold Plated Contacts AC3FAHL-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAHL1-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAHL2-AU-PRE Drawing   3D
A Type / Black Finish / Horizontal PCB / Latching
Gold Plated Contacts AC3FAH-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAH1-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAH2-AU-PRE Drawing   3D

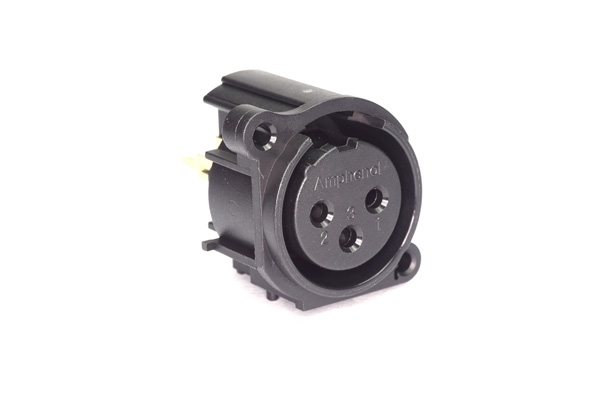

A Type / Black Finish / Vertical PCB / Non-Latching
Gold Plated Contacts AC3FAVL-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAVL1-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAVL2-AU-PRE Drawing   3D
A Type / Black Finish / Vertical PCB / Latching
Gold Plated Contacts AC3FAV-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAV1-AU-PRE Drawing   3D
Gold Plated Contacts AC3FAV2-AU-PRE Drawing   3D
B Type / Nickel Finish / Horizontal PCB / Latching
- AC3FBH-AU-PRE Drawing
- AC3FBH1-AU-PRE Drawing   3D
- AC3FBH2-AU-PRE Drawing   3D
- AC3FBH3-AU-PRE Drawing
B Type / Nickel Finish / Horizontal PCB / Non-Latching
- AC3FBHL-AU-PRE Drawing
- AC3FBHL1-AU-PRE
- AC3FBHL2-AU-PRE Drawing
- AC3FBHL3-AU-PRE
B Type / Nickel Finish / Vertical PCB / Latching
- AC3FBV-AU-PRE Drawing
- AC3FBV1-AU-PRE Drawing
- AC3FBV2-AU-PRE Drawing   3D
- AC3FBV3-AU-PRE
B Type / Nickel Finish / Vertical PCB / Non-Latching
- AC3FBVL-AU-PRE Drawing
- AC3FBVL1-AU-PRE Drawing
- AC3FBVL2-AU-PRE Drawing
- AC3FBVL3-AU-PRE Drawing

5 Pole

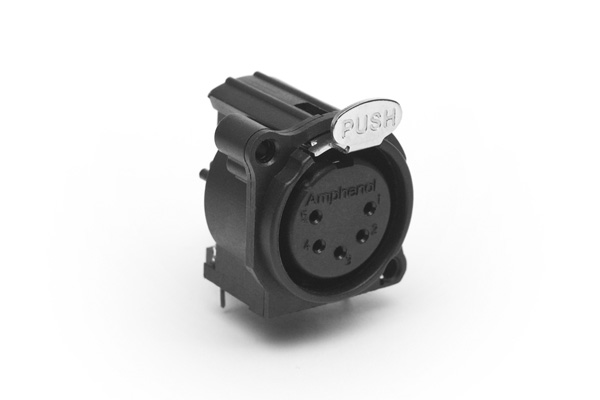

A Type / Black Finish / Horizontal PCB / Latching
Gold Plated Contacts AC5FAH-AU-B Drawing   3D
A Type / Black Finish / Vertical PCB / Latching
Gold Plated Contacts AC5FAV-AU-B Drawing   3D
B Type / Nickel Finish / Horizontal PCB / Latching
- AC5FBH-AU-PRE Drawing   3D
B Type / Nickel Finish / Vertical PCB / Latching
- AC5FBV-AU-PRE Drawing   3D
Features
  • A leading first mate last break socket contact is standard on all female connectors (Pin 1)
  • Vertical and Horizontal PCB versions available
  • Latching and Non-latching versions available
  • A range of different grounding options are available including:
    – Mating connector shell to Pin 1
    – Mating connector shell to Chassis
    – Mating connector shell to pin 1  to Chassis
  • A type is available in 3 or 5 contacts
  • B type is available in 3 contact only
  • Compatible with all other XLR brands
  • Metal Mounting Flange (B type)

Recommended Mounting Screws

Options
  • Vertical PCB contacts
  • Horizontal PCB contacts
  • Precision Machined Pin contacts
  • Cost effective Stamped Socket contacts
  • Gold Plated contacts (Standard)
  • Silver Plated contacts (Optional)
  • Bulk Packaging
  • Integrated Switch
