SP Series

Loudspeaker Chassis Mounts

The SP Series are available in 2 or 4 pole chassis mount connectors. The durable thermoplastic housings are fitted with high power contacts to ensure optimal current carrying capacity. Completely intermatable with industry standard loudspeaker connections.

Downloads »

Filter By

Shell Style
Contact Layouts
Mounting Hole
Termination
Shell Colour
Airtight
Packaging

No items were found matching the selected filters

'D' Type Flange

2 Pole

Thru Holes / Solder Tabs 3/16" / Black
Single Pack SP-2-MD Drawing   3D
Bulk Pack SP-2-MD B Drawing   3D
Thru Holes / Horizontal PCB / Black
Single Pack SP-2-MDH Drawing   3D
Bulk Pack SP-2-MDH B Drawing   3D
Thru Holes / Vertical PCB / Black
Single Pack SP-2-MDV Drawing
Bulk Pack SP-2-MDV B Drawing

4 Pole

Thru Holes / Solder Tabs 3/16" / Black
Single Pack SP-4-MD Drawing   3D
Bulk Pack SP-4-MD B Drawing
Self Tapping Holes / Solder Tabs 3/16" / Black / Airtight
Single Pack SP-4-MDAT Drawing   3D
Thru Holes / Solder Tabs 3/16" / Black / Airtight
Single Pack SP-4-MDA Drawing   3D
Thru Holes / Solder Tabs 1/4" / Black
Single Pack SP-4-MDQ Drawing
Bulk Pack SP-4-MDQ B Drawing
Thru Holes / Solder Tabs 3/16" / Grey
Single Pack SP-4-MD-8 Drawing
Bulk Pack SP-4-MD-8 B Drawing
Self Tapping Holes / Solder Tabs 3/16" / Black
Single Pack SP-4-MDT Drawing
Bulk Pack SP-4-MDT B Drawing
Thru Holes / Horizontal PCB / Black
Single Pack SP-4-MDH Drawing   3D
Bulk Pack SP-4-MDH B Drawing   3D
Self Tapping Holes / Horizontal PCB / Black
Single Pack SP-4-MDHT Drawing
Bulk Pack SP-4-MDHT B Drawing
Self Tapping Holes / Horizontal PCB / Grey
Single Pack SP-4-MDHT-8 Drawing
Bulk Pack SP-4-MDHT-8 B Drawing
Thru Holes / Vertical PCB / Black
Single Pack SP-4-MDV Drawing
Bulk Pack SP-4-MDV B Drawing
Self Tapping Holes / Vertical PCB / Grey
Single Pack SP-4-MDVT-8 Drawing
Bulk Pack SP-4-MDVT-8 B Drawing

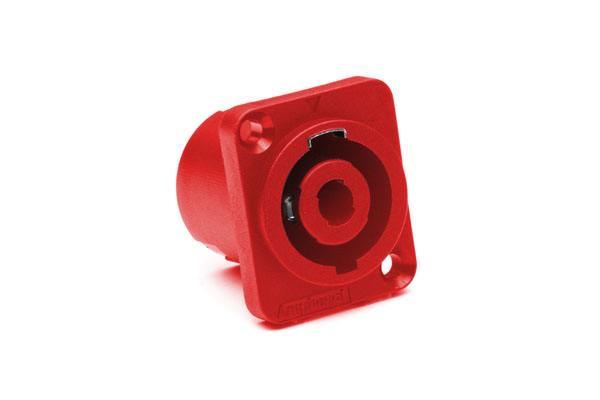

Thru Holes / Vertical PCB / Red
Single Pack SP-4-MDV-2 Drawing
Bulk Pack SP-4-MDV-2 B Drawing

EP Series Circular Flange

4 Pole

Thru Holes / Solder Tabs 3/16" / Black
Single Pack SP-4-MC Drawing   3D
Features
  • High current contacts for distortion free signal
  • Cost effective durable thermoplastic shell
  • Available in 2 and 4 contact arrangements
  • Quick release, vibration resistant latch lock
  • Precision machined contacts
  • Thermoplastic shell
Options
  • Solder termination / Tab or Printed Circuit Board versions, Screw Terminals
  • Nickel Plated Zinc Alloy shell
  • Black finished Zinc Alloy shell
