XLRnet

A and B Type
Ethernet Chassis Mounts

XLRnet was designed in conjunction with the Amphenol Data / Telecom product group of Amphenol Canada Corp., a subsidiary of Amphenol Corporation. Utilising our combined expertise and knowledge of the professional audio and high-speed data markets we are proud to offer the XLRnet series. Featuring Class D (10/100 BASE-T), CAT5E (1000 BASE-T) or CAT6 (10GBASE-T) ethernet performance in A, B shell housings with integrated LED’s and complete shielding options we have your high-speed data requirements covered. CAT5E and CAT6 variants support PoE and PoE++, Types 1 to 4 and are IEC60603-7 compliant.

Downloads »

Filter By

Termination
Housing
Ethernet Performance
Shield
LED Availability
LED Colour (L/R)

No items were found matching the selected filters

Horizontal PCB

A Type

Class D / Non-Shielded
No LED RJX8FA3HB Drawing   3D
CAT5E / Non-Shielded
No LED RJX8FA5HB Drawing
CAT6 / Non-Shielded
No LED RJX8FA6HB Drawing

B Type

Class D / Non-Shielded
No LED RJX8FB3HB Drawing
Class D / Shielded
No LED RJX8FB3HEB Drawing
CAT5E / Non-Shielded
No LED RJX8FB5HB Drawing   3D
CAT5E / Shielded
No LED RJX8FB5HEB Drawing   3D
CAT5E / Non-Shielded / Light Pipe

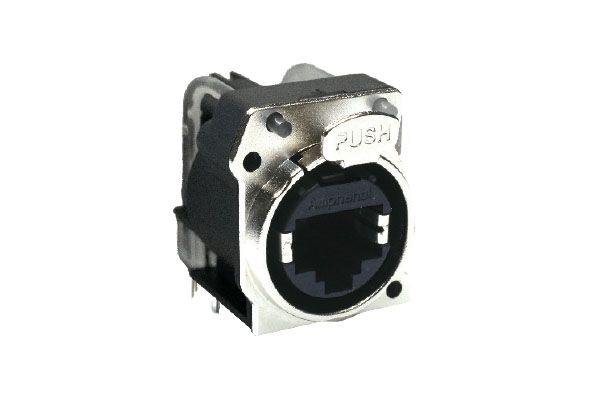

- RJX8FB5HLPB Drawing   3D
CAT5E / Shielded / Light Pipe

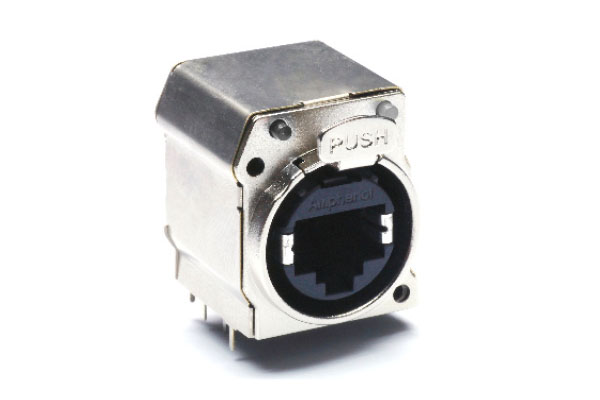

- RJX8FB5HLPEB Drawing   3D
CAT5E / Non-Shielded / LED Indicator
Red/Green RJX8FB5HRGB Drawing
Red/Yellow RJX8FB5HRYB Drawing
Red/Red RJX8FB5HRRB Drawing
Green/Red RJX8FB5HGRB Drawing
Green/Yellow RJX8FB5HGYB Drawing
Green/Green RJX8FB5HGGB Drawing
Yellow/Red RJX8FB5HYRB Drawing
Yellow/Yellow RJX8FB5HYYB Drawing
Blue/Blue RJX8FB5HUUB Drawing
CAT5E / Shielded / LED Indicator

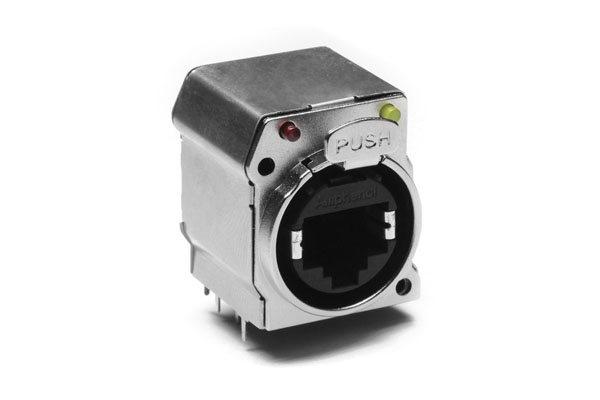

Red/Green RJX8FB5HRGEB Drawing   3D
Red/Yellow RJX8FB5HRYEB Drawing   3D
Red/Red RJX8FB5HRREB Drawing   3D
Green/Red RJX8FB5HGREB Drawing   3D
Green/Yellow RJX8FB5HGYEB Drawing   3D
Green/Green RJX8FB5HGGEB Drawing   3D
Yellow/Red RJX8FB5HYREB Drawing   3D
Yellow/Yellow RJX8FB5HYYEB Drawing   3D
Yellow/Green RJX8FB5HYGEB Drawing   3D
Blue/Blue RJX8FB5HUUEB Drawing   3D
CAT6 / Non-Shielded
No LED RJX8FB6HB Drawing
CAT6 / Shielded
No LED RJX8FB6HEB
CAT6 / Non-Shielded / Light Pipe
- RJX8FB6HLPB Drawing   3D
CAT6 / Shielded / Light Pipe
- RJX8FB6HLPEB Drawing   3D
CAT6 / Non-Shielded / LED Indicator
Red/Green RJX8FB6HRGB Drawing   3D
Red/Yellow RJX8FB6HRYB Drawing   3D
Red/Red RJX8FB6HRRB Drawing   3D
Green/Red RJX8FB6HGRB Drawing   3D
Green/Yellow RJX8FB6HGYB Drawing   3D
Green/Green RJX8FB6HGGB Drawing   3D
Yellow/Red RJX8FB6HYRB Drawing   3D
Yellow/Yellow RJX8FB6HYYB Drawing   3D
Yellow/Green RJX8FB6HYGB Drawing   3D
Blue/Blue RJX8FB6HUUB Drawing   3D
CAT6 / Shielded / LED Indicator
Red/Green RJX8FB6HRGEB Drawing   3D
Red/Yellow RJX8FB6HRYEB Drawing   3D
Red/Red RJX8FB6HRREB Drawing   3D
Green/Red RJX8FB6HGREB Drawing   3D
Green/Yellow RJX8FB6HGYEB Drawing   3D
Green/Green RJX8FB6HGGEB Drawing   3D
Yellow/Red RJX8FB6HYREB Drawing   3D
Yellow/Yellow RJX8FB6HYYEB Drawing   3D
Yellow/Green RJX8FB6HYGEB Drawing   3D
Blue/Blue RJX8FB6HUUEB Drawing   3D

Vertical PCB

A Type

Class D / Non-Shielded
No LED RJX8FA3VB Drawing   3D
CAT5E / Non-Shielded
No LED RJX8FA5VB Drawing
CAT5E / Non-Shielded

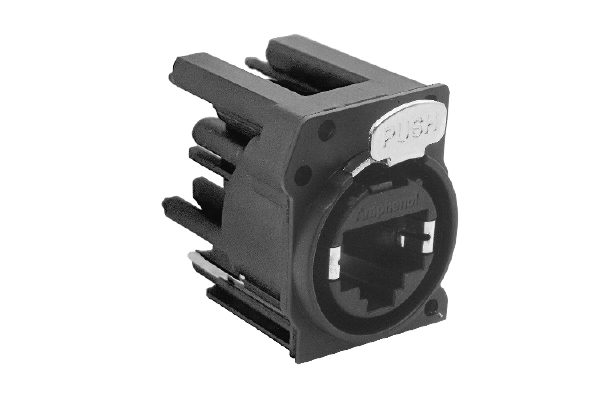

24mm RJX8FA5V2B Drawing
CAT6 / Non-Shielded
No LED RJX8FA6VB Drawing
CAT6 / Non-Shielded
24mm RJX8FA6V2B Drawing

B Type

Class D / Non-Shielded
No LED RJX8FB3VB Drawing
Class D / Shielded
No LED RJX8FB3VEB
CAT5E / Non-Shielded
No LED RJX8FB5VB Drawing
CAT5E / Non-Shielded
24mm RJX8FB5V2B Drawing
CAT5E / Non-Shielded / Light Pipe

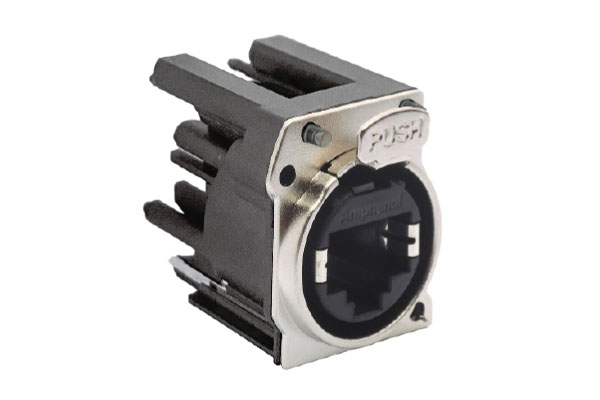

24mm RJX8FB5V2LPB Drawing   3D
CAT5E / Shielded / Light Pipe

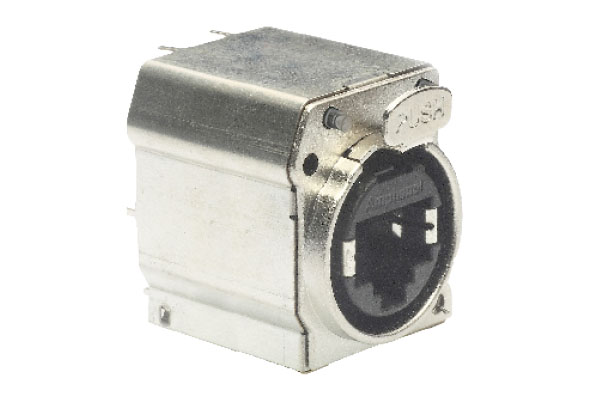

24mm RJX8FB5V2LPEB Drawing   3D
CAT5E / Non-Shielded / LED Indicator
Red/Green RJX8FB5VRGB Drawing
Red/Yellow RJX8FB5VRYB Drawing
Red/Red RJX8FB5VRRB Drawing
Green/Red RJX8FB5VGRB Drawing
Green/Yellow RJX8FB5VGYB Drawing
Green/Green RJX8FB5VGGB Drawing
Yellow/Red RJX8FB5VYRB Drawing
Yellow/Yellow RJX8FB5VYYB Drawing
Yellow/Green RJX8FB5VYGB Drawing
Blue/Blue RJX8FB5VUUB Drawing
CAT5E / Shielded
No LED RJX8FB5VEB Drawing   3D
CAT5E / Shielded
24mm RJX8FB5V2EB Drawing
CAT5E / Shielded / LED Indicator
Red/Green RJX8FB5VRGEB Drawing
Red/Yellow RJX8FB5VRYEB Drawing
Red/Red RJX8FB5VRREB Drawing
Green/Red RJX8FB5VGREB Drawing
Green/Yellow RJX8FB5VGYEB Drawing
Green/Green RJX8FB5VGGEB Drawing
Yellow/Red RJX8FB5VYREB Drawing
Yellow/Yellow RJX8FB5VYYEB Drawing
Yellow/Green RJX8FB5VYGEB Drawing
Blue/Blue RJX8FB5VUUEB Drawing
CAT6 / Non-Shielded
No LED RJX8FB6VB Drawing
CAT6 / Non-Shielded
24mm RJX8FB6V2B Drawing
CAT6 / Non-Shielded / Light Pipe
24mm RJX8FB6V2LPB Drawing   3D
CAT6 / Shielded / Light Pipe
24mm RJX8FB6V2LPEB Drawing   3D
CAT6 / Non-Shielded / LED Indicator
Red/Green RJX8FB6VRGB
Red/Yellow RJX8FB6VRYB
Red/Red RJX8FB6VRRB
Green/Red RJX8FB6VGRB
Green/Yellow RJX8FB6VGYB
Green/Green RJX8FB6VGGB
Yellow/Red RJX8FB6VYRB
Yellow/Yellow RJX8FB6VYYB
Yellow/Green RJX8FB6VYGB
Blue/Blue RJX8FB6VUUB
CAT6 / Shielded
No LED RJX8FB6VEB
CAT6 / Shielded
24mm RJX8FB6V2EB Drawing
CAT6 / Shielded
Red/Green RJX8FB6VRGEB
Red/Yellow RJX8FB6VRYEB
Red/Red RJX8FB6VRREB
Green/Red RJX8FB6VGREB
Green/Yellow RJX8FB6VGYEB
Green/Green RJX8FB6VGGEB
Yellow/Red RJX8FB6VYREB
Yellow/Yellow RJX8FB6VYYEB
Yellow/Green RJX8FB6VYGEB
Blue/Blue RJX8FB6VUUEB
Features
  • RJ45 Class D (10/100 BASE-T), CAT5E (1000 BASE-T) or CAT6 (10GBASE-T) Ethernet performance
  • A or B type chassis housings
  • Shielded or non-shielded
  • LED indicators in a variety of colours
  • Horizontal or Vertical PCB
  • Mates with XLRnet cable plugs or standard RJ45 plug
