AC Series (HDMI/USB)

Data Chassis Mounts

Downloads »

Filter By

Type
Finish

No items were found matching the selected filters

USB

D Type

Nickel Finish
Standard AC-USB3-AA Drawing   3D
Black Finish
Standard AC-USB3-AAB Drawing   3D

HDMI

D Type

Nickel Finish
Standard AC-HDMI-RR Drawing   3D
Black Finish

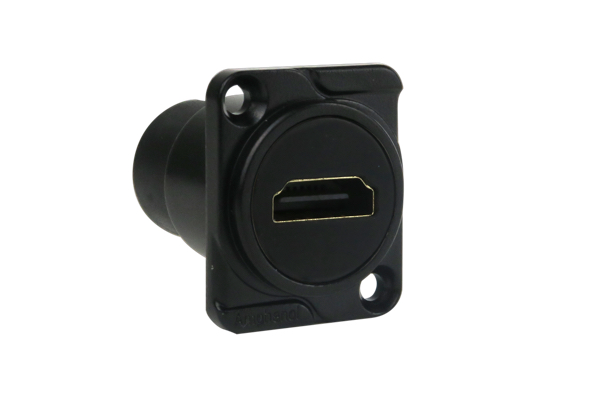

Standard AC-HDMI-RRB Drawing   3D
Features
  • Data connectors
  • Feedthrough adaptors
  • USB 3 Type A
  • HDMI receptacles
Options
  • Nickel or Black Shell Finish
Technical Documentation (PDFs)
