T Series

Professional Range
1/4″ & 3.5mm Plugs

Amphenol offers two ranges of 1/4” Phone plug connectors to satisfy the needs of the manufacturer and the end user. The PRO – a heavy duty on-road plug, offers different features and benefits and the most suitable type will be determined by application, budget and personal choice.

*Refer to Technical Data for Jaws cable clamp specifications applicable to right angle connectors.

Downloads »

Filter By

Channels
Backshell Material
Angle
Finish
Contact

No items were found matching the selected filters

Mono

Thermoplastic Backshell

Straight / Satin Finish
Standard Plating TM2P Drawing   3D
Gold Plated Contacts TM2P-AU Drawing
Large Cable Clamp TM2PJ Drawing
Bulk Pack TM2P BULK Drawing
Straight / Black Finish
Standard Plating TM2PB Drawing
Gold Plated Contacts TM2PB-AU Drawing   3D
Large Cable Clamp TM2PBJ Drawing
Bulk Pack TM2PB BULK Drawing

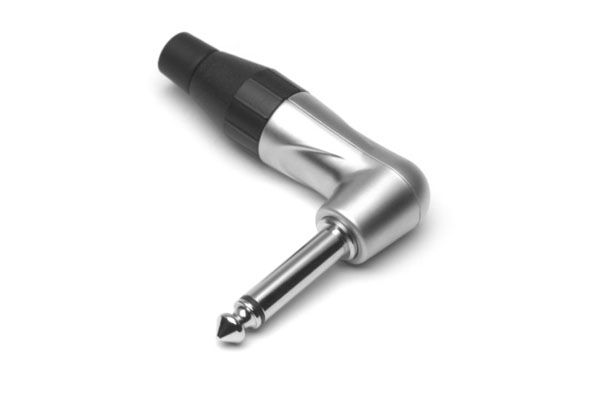

Right Angled / Satin Finish
Large Cable Clamp TM2RJ* Drawing
Gold Plated Contacts TM2RJ-AU* Drawing
Right Angled / Black Finish
Large Cable Clamp TM2RBJ* Drawing
Gold Plated Contacts TM2RBJ-AU* Drawing
Bulk Pack TM2RBJ BULK* Drawing

Metal Backshell

Straight / Satin Finish
Standard Plating TM2PN Drawing   3D
Gold Plated Contacts TM2PN-AU Drawing
Large Cable Clamp TM2PNJ Drawing
Bulk Pack TM2PN BULK Drawing

Stereo

Thermoplastic Backshell

Straight / Satin Finish
Standard Plating TS3P Drawing
Gold Plated Contacts TS3P-AU Drawing
Large Cable Clamp TS3PJ Drawing
Bulk Pack TS3P BULK Drawing
Straight / Black Finish
Standard Plating TS3PB Drawing
Gold Plated Contacts TS3PB-AU Drawing
Large Cable Clamp TS3PBJ Drawing
Bulk Pack TS3PB BULK Drawing
Right Angled / Satin Finish
Large Cable Clamp TS3RJ* Drawing
Gold Plated Contacts TS3RJ-AU* Drawing
Right Angled / Black Finish
Large Cable Clamp TS3RBJ* Drawing
Gold Plated Contacts TS3RBJ-AU* Drawing

Metal Backshell

Features
  • Mono or Stereo (TRS)
  • Stylised shell design with Ergonomic grip
  • Straight or Right Angle.
  • Robust diecast shell in Satin nickel or Black finish
  • Nickel or Gold contact plating
  • Keyed shell
  • Optional heavy duty metal backshell / boot
  • Great solderability
  • Increased solder area on ground contact
  • “Jaws” Cable Clamp
  • Precision machined contacts
  • Quick and easy assembly
Options
  • Gold Contacts
  • Large or Small Jaws Cable Clamp
  • Black Shell
  • Metal Backshell Boot
  • Bulk Pack
  • Coloured grommets (ordered separately)
Technical Documentation (PDFs)
